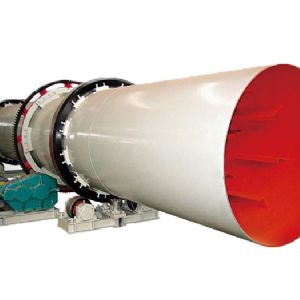

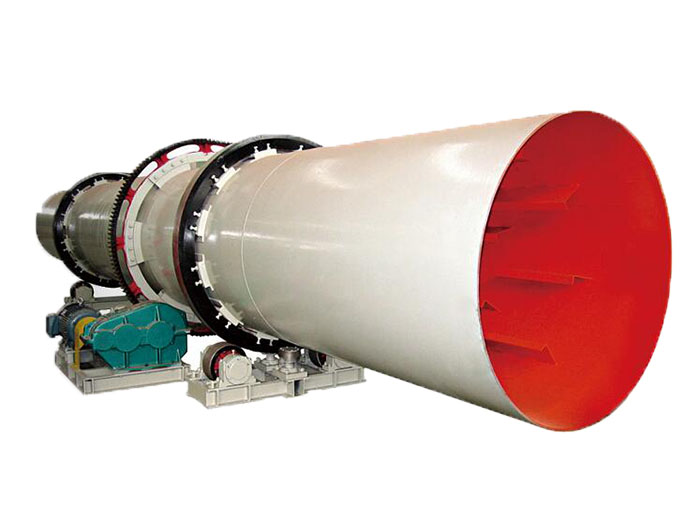

HLQ1210-HLQ3026 Rotary Cooler

■ USE◎ It is used for cooling of various final fertilizers and chemical materials■ Profile of

信息詳情

■ USE

◎ It is used for cooling of various final fertilizers and chemical materials

■ Profile of Equipment

◎ This equipment can quickly cool higher-temperature of granular compound ferfilizer directly approximately to normal atmospheric temperature, which is convenient for timely and quick packing and prevents compound fertilizer from froming blok during store. It can achieve adverse-flow cooling, which can reduce pollution and improve working environment. It has many characteristics such as reasonable structure, stable run,strong aaptability etc..

■ Main Technical parameters:

Type		HLQ1210	HLQ1515	HLQ1818	HLQ2020	HLQ2220	HLQ2420	HLQ2626	HLQ2826	HLQ3026
Size(cylinder dia.×cylinder length) (m)		Φ1.2×10	Φ1.5×15	Φ1.8×18	Φ2.0×20	Φ2.2×22	Φ2.4×20	Φ2.6×26	Φ2.8×26	Φ3.0×26
Capacity (t/h)		3-5	6-8	8-10	10-14	15-18	18-22	22-25	26-30	30-35
Rotary speed (r/min)		5.2	4.4	4.2	4.0	4.0	3.6	3.5	3.25
Slope (degree)		2-2.5
Motor	Type	Y160M-6	Y180L-6	Y200L2-6	Y225M-6	Y280S-6	Y280M-6	Y315S-6	Y315M-6	Y315L2-6
Motor	Power(kw)	7.5	15	22	30	45	55	75	90	132
Dimensions (L.×W.×H.) (mm)		10750 ×2025 ×2130	15750 ×2375 ×3110	19600 ×2630 ×3400	20750 ×2820 ×3200	22000 ×3380 ×4100	22600 ×4200 ×4500			22745 ×4810 ×4920
