■ Process Characters

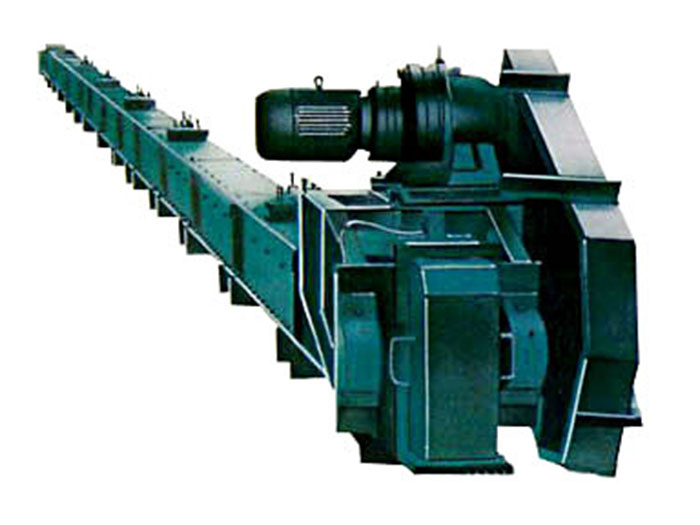

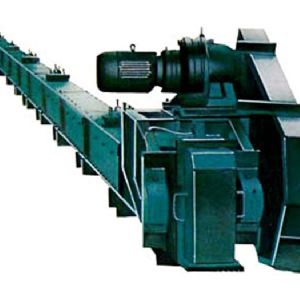

◎  This equipment is continuous conveying equipment. In the closed rectangular shell, it can convey the powdery、small  granular and small pieces materials by means of the moving scraper chains. Because when convey material, scraper chain all be buried in the material, so called it "Buried scraper conveyor.

◎  General type Buried scraper conveyor have the following requirements for the conveying materials: 1、Material density：γ=0.2~1.8t/m3；2、Material temperature：t<100°C；3、Moisture content： For general materials, it is not allowed to make it not easy to be loosed after kneading dough by hand; It will increase the adhesiveness and pressure after the moisture content increase, it can't make material seriously adhere to the scrapers；4、Granularity：Material granularity is related to its hardness , if granularity is too big, it is not suitable for conveying.

■ Main Technical parameters:
