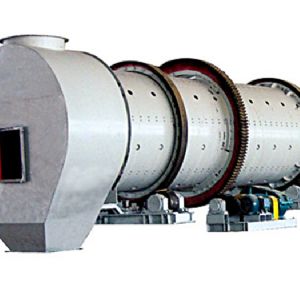

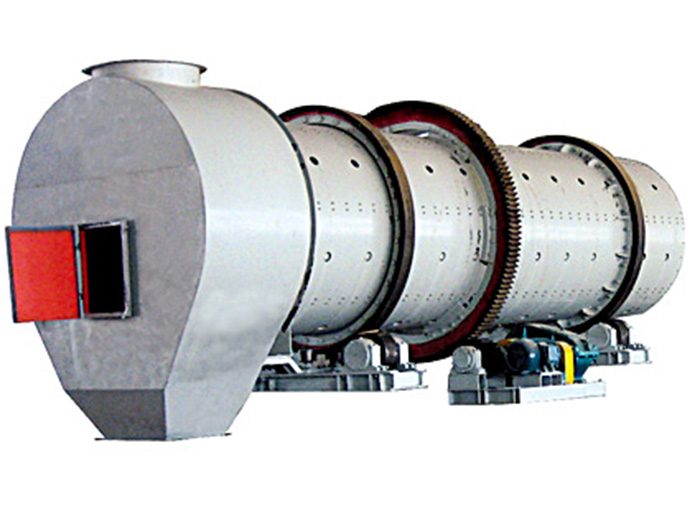

HZL1405-HZL3012 Ratary Drum Granulator

■ Use◎ For cold and hot granulation, as well as large-scale production of high, medium and l

信息詳情


■ Use

◎ For cold and hot granulation, as well as large-scale production of high, medium and low concentration compound fertilizer.

■ Equipment introduction

◎ The barrel of the machine is made of special rubber lining and stainless steel pressure plate to realize automatic removal of mites and tumors. It has the characteristics of high ball strength, good appearance quality, corrosion resistance, wear resistance, low energy consumption, long service life and convenient operation and maintenance.

■ Main Technical parameters:

Type		HZL1405	HZL1606	HZL1806	HZL2007	HZL2208	HZL2408	HZL2610	HZL2811	HZL3012
Size(cylinder Dia.×cylinder Length) (m)		Φ1.4×5	Φ1.6×6	Φ1.8×6	Φ2.0×7	Φ2.2×8	Φ2.4×8	Φ2.6×10	Φ2.8×11	Φ3.0×12
Capacity (t/h)		3-4	5-8	8-12	12-15	15-18	20-26	26-30	30-35	40-50
Rotary Speed (r/min)		13.2	11.9	11.3	10.2	9.7	9.6	9.2	8.9	8.7
Slope (degree)		2-2.5
Granulation Percentage(%)		60-80
Motor	Type	Y160M-4	Y160L-6	Y200L1-6	Y200L2-6	Y250M-6	Y280M-6	Y315S-6	Y315M-6	Y315L2-6
Motor	Power(kw)	11	11	18.5	22	37	55	75	90	132
外形尺寸 (長L.×寬W.×高H.) (mm)		5320 ×2820 ×2300	7200 ×2315 ×2520	7350 ×2900 ×3160	8730 ×3040 ×3515	9800 ×3280 ×3610	9800 ×3300 ×3780	12000 ×3350 ×3920	12850 ×3560 ×4800	14500 ×4900 ×5150
