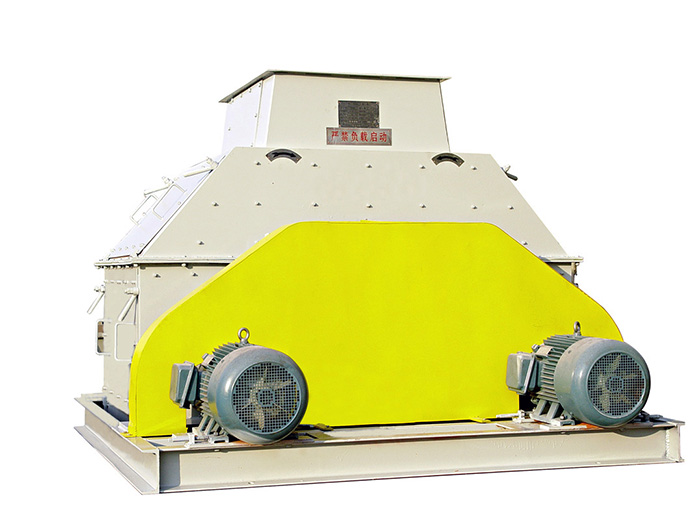

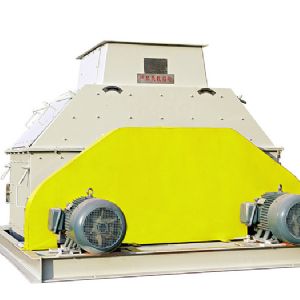

HWS50-HWS100 Horizontal Pulverizer

■ USE◎ It is used in phosphate compound fertilizer industry for pulverizing perparative materi

信息詳情


■ USE

◎ It is used in phosphate compound fertilizer industry for pulverizing perparative materials and back-materials.

■ Profile of Equipment

◎ This equipment is designed into mutual-roll type, Reosonable arrangement of feeding inlet can ensure adequate pulverizing time of materials, thereby being sure of full pulverizing of materials, fine and even granularity, and convenient for granulating, It is lined with stainless steel. Damping pedestal can be fitted on equipment according to need, which can reduce impact on foundation and manufacture cost of foundation.

■ Main Technical parameters:

Type		HWS50	HWS60	HWS70	HWS80	HWS100
Center Distance (mm)		500	600	700	800	1000
Capacity (t/h)		5-6	6-10	12-16	16-20	20-25
Feeding Granulatity (mm)		＜100	＜100	＜120	＜120	＜120
Discharging Granularity		≤1mm占70%-90%
Motor	Type	Y132M-4	Y160L-4	Y160L-4	Y180L-4	Y225M-4
Motor	Power (kw)	7.5×2	11×2	15×2	22×2	55×2
Dimensions (L.×W.×H.) (mm)		1754 ×1292 ×1115	1850 ×1650 ×1330	2150 ×2020 ×1600	2170 ×2320 ×1725	2620 ×2900 ×2150
