Your present position：Home>Sieve Equipments

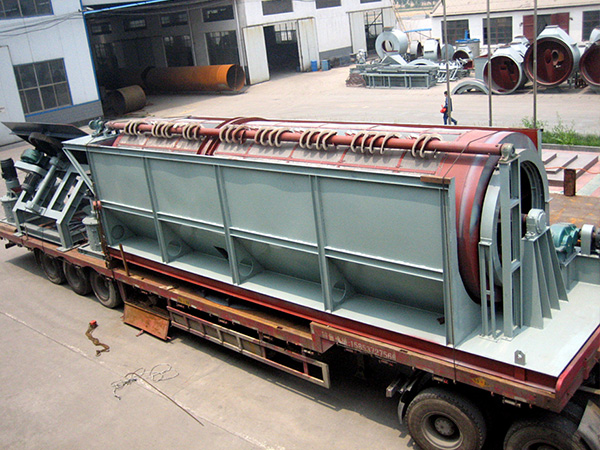

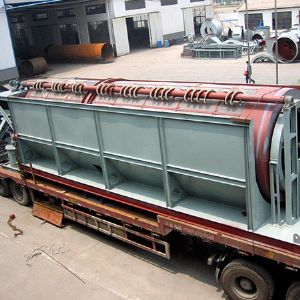

HGS10-HGS22 Rotary Grading Sieve

■ USE◎ It is used for grading and sieving of compound fertilizer.■ Profile of Equipment◎

信息詳情

■ USE

◎ It is used for grading and sieving of compound fertilizer.

■ Profile of Equipment

◎ This equipment is fitted with different meshes of sieve meshworks from feeding side to discharging side, which can achieve grading and sieving of compound fertilizer, This equipment has the characteristics of large capacity, good sieving effects, convenient operation etc.. This equipment It can be fitted with the following two types of sieve cylinders: round type and conical type.

■ Main Technical parameters:

Type	HGS10	HGS12	HGS15	HGS18	HGS20	HGS22	HGS24
Size(cylinder Dia.×cylinder Length) (m)	Φ1.0×4	Φ1.2×5	Φ1.5×6	Φ1.8×6	Φ2.0×6	Φ2.2×8	Φ2.4×8
Rotary speed (r/min)	15.4	15.4	16	14.5	15	10	10
Capacity (t/h)	3-5	5-8	8-12	12-15	15-20	20-28	30-45
Power of motor(kw)	3	4	7.5	11	15	15	22
Dimension (L.×W.×H.) (mm)	6200 ×1780 ×2100	6500 ×1950 ×2200	7705 ×2280 ×1050	7900 ×2580 ×4160	8200 ×3200 ×4800	10375 ×2600 ×2800	10375 ×2800 ×3200
