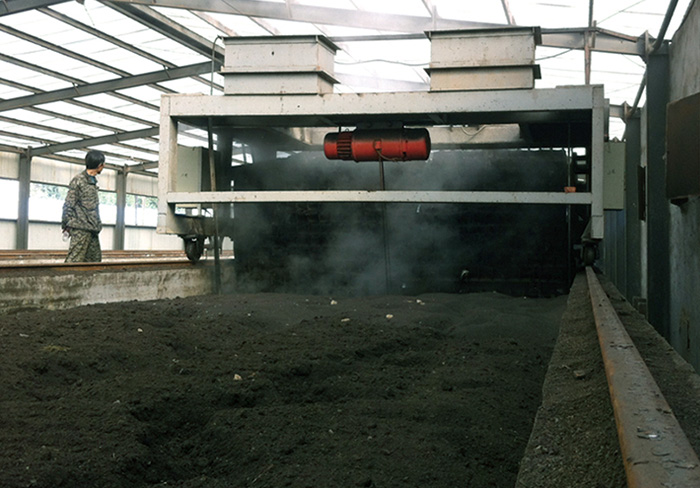

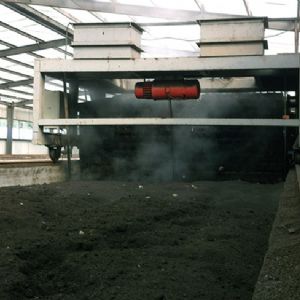

HCD20-HCD100 Chain piate Tooth rake rolling & piling machine

■ USE◎ It is used for tank-type rolling & piling ferment treatment of various organic mate

信息詳情

1-20萬(wàn) 發(fā)酵工藝及成套設(shè)備.jpg

■ USE

◎ It is used for tank-type rolling & piling ferment treatment of various organic materials to increase speed of aerophile ferment.

■ Profile of Equipment

◎ This equipment is specially designed for pool-type ferment system, It is composed of host, rails, transportation flatbed, Host for the equipment with unique structure of the tooth rake and chain piate, walking through the traction device, It's movements (on and down) controlled by the pressure of the system completed.

■ Main Technical parameters:

Type	HCD20（Chain plate）	HCD40（Chain plate）	HCD60	HCD80	HCD120
Size(Bed Width) (mm)	2000	4000	6000	8000	12000
Capacity (m3/h)	80-120	150-200	180-300	250-400	400-600
Height of rolling & piling (mm)	1250
Dimension (L.×W.×H.) (mm)	4180 ×2945 ×1320	4400 ×4770 ×3625	6600 ×4340 ×4300	8750 ×5500 ×4500	13000 ×6700 ×4850
